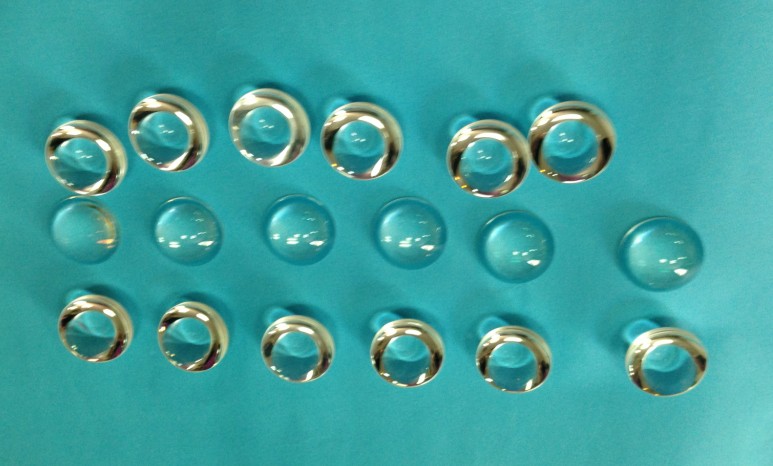

FITEC OPTICS make asphere with custom diamond turned(CNC manufacturing) as well as with molded asphere.
|
|
|
|
Custom asphere tolerance:
|
|
|
|
|
|
|
|
Parameter
|
Commercial (standard)
|
|
|
|
|
|
|
Effective Focal Length (EFL)
|
± 1%
|
|
|
|
|
|
|
Center Thickness (CT)
|
± 0.025 mm
|
|
|
|
|
|
|
Outer Diameter (OD)
|
± 0.015 mm
|
|
|
|
|
|
|
Wedge (arcmin)
|
4
|
|
|
|
|
|
|
Power/Irregularity (fringes)
|
3/0.5
|
|
|
|
|
|
|
Surface Roughness
|
PV< 1 μm RMS<0.15μm
|
|
|
|
|
|
|
Surface Quality (scratch/dig)
|
40/20
|
|
|
|
|
|
|
*Manufacturability depends on size & shape of the optics, as well as production volume
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Molded asphere tolerance:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parameter
|
Commercial (standard)
|
|
|
|
|
|
|
Effective Focal Length (EFL)
|
± 1%
|
|
|
|
|
|
|
Center Thickness (CT)
|
± 0.025 mm
|
|
|
|
|
|
|
Outer Diameter (OD)
|
± 0.015 mm
|
|
|
|
|
|
|
Wedge (arcmin)
|
4
|
|
|
|
|
|
|
Power/Irregularity (fringes)
|
3/0.5
|
|
|
|
|
|
|
Surface Roughness
|
PV< 2 μm RMS<0.25μm
|
|
|
|
|
|
|
Surface Quality (scratch/dig)
|
60/40
|
|
|
|
|
|
|
*Manufacturability depends on size & shape of the optics, as well as production volume
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
